Xirrus XD2-230 Indoor Access Points
Meet the Demand of Today’s Devices

Cambium Networks have acquired Xirrus! For the latest Xirrus' products please visit our Cambium Networks site.

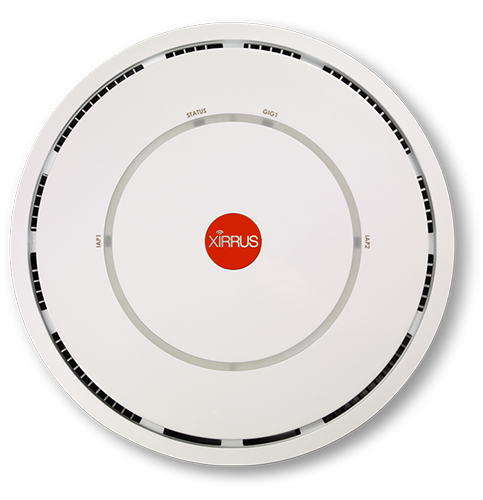

Xirrus XD2-230 Series



The XD2-230 is an intelligent 802.11ac Wave 2 Access Point (AP) that is very easy to deploy and simple to manage from the cloud or on-premise. Designed with a powerful integrated controller, layer 7 application visibility and simple user access with EasyPass, this AP provides a seamless solution for environments requiring high performance Wi-Fi connectivity, such as classrooms, offices, hospitals, libraries, and more. The powerful XD2-230 AP has 3 radios, including Bluetooth Low Energy (BLE), and provides secure access for Wi-Fi users and IoT devices. This highly extensible AP easily integrates with 3rd party software through standards based JSON APIs for advanced capabilities such as location services. With a click of a button, software defined radios enable an instant increase in 5GHz capacity to adapt to changing client needs to deliver the industry’s best price-performance solution.

802.11ac Wave 2 technology provides significant performance improvements and greatly increases the efficiency of Wi-Fi networks. XD2 APs leverage Wave 2 to meet the demands of today’s BYOD and Internet of Things (IoT) environments with the capacity to support increased demand whenever needed.

Ideal for offices, classrooms, conference rooms, and other areas that require robust Wi-Fi connectivity, the XD2 delivers extreme performance even with applications that demand a lot of bandwidth.

Manage and upgrade your network with ease. Cloud-based or on-premise network management ties your Wi-Fi network together. Installation is fully customizable through deployment kits, enclosures, and mounting options. Build the system that works best for you.


  • Twice the number of 11ac 5GHz radios per AP reduces equipment and lowers TCO
  • Cloud or on-premise management with zero-touch provisioning
  • Integrated application control to ensure reliable Wi-Fi performance
  • Distributed intelligence with integrated controller for no single point of failure
  • EasyPass access services simplifies onboarding for guests, employees and BYOD


EASY TO MANAGE — Designed for simple deployment, zero-touch configuration gets your network up and running in minutes. Combined with the Xirrus Management System (XMS), this solution provides complete visibility and control to easily manage users, devices and applications, all from a single console.

HIGH PERFORMANCE — Packed with performance, this dual radio AP delivers 2x the 5GHz Wi-Fi capacity compared to competitive APs. Instantly boost performance with the click of a mouse to adapt to changing client devices and optimize the user experience.

SIMPLE USER ACCESS — Xirrus EasyPass Access Services, integrated with Xirrus Management System-Cloud (XMS-Cloud): at no extra charge, provides a highly secure solution to simplify users connecting to the network, including single sign-on (SSO) with Microsoft and Google domains, self-provisioned access for guests, and easy onboarding of BYOD and headless IoT devices.

XD2 access points support software-defined radios that enable dual 802.11ac radio operation. This capability ensures a long product lifespan and allows gradual migration to Wave 2 as clients come to market.

XD2 access points support multi-user MIMO (MU-MIMO), a Wave 2 advancement that enables multiple clients to communicate at once. This revolutionizes Wi-Fi operation and dramatically increases its efficiency.

Get up to twice the speed of other 802.11ac Wave 2 APs on the market. XD2 access points create an unsurpassed user experience. Mobile applications and Internet of Things (IoT) devices benefit from the new Wave 2 standard.


  • High performance 802.11ac Wave 2 AP
  • Software-defined radios enable all-5GHz deployment
  • EasyPass simplifies Wi-Fi access
  • Bluetooth ready AP for locationing
  • SSO with Office 365 and Google Apps
  • Manage from the cloud or on premise


With a powerful integrated controller, application level intelligence, zero-touch provisioning, and available cloud-based network management, Xirrus X, XR, XD series Access Points provide powerful Wi-Fi solutions for environments including classrooms, offices, hospitals, hotel rooms, and more. Xirrus Access Points are backward compatible and the latest model supports 802.11ac Wave 2 with Multi-User MIMO. Xirrus APs feature dual software programmable radios that deliver twice the number of 802.11ac radios compared to standard APs.

Configuration Specifications

Chassis Dimensions 7.7” Diameter, 2.3” H
Supported Standards 802.11a/b/g/n/ac (Wave 2)
Total Number of Radios Total 3: 1 - 2.4GHz / 5GHz - software defined radio (802.11a/b/g/n/ac Wave 1) 1 – 5GHz (802.11a/n/ac Wave1/Wave 2) 1 - Bluetooth Low Energy (BLE)
Radio Type 3x3, 11ac Wave 2
MIMO Technology MU-MIMO: 3 streams SU-MIMO: 3 streams
Channel Bonding Up to 160MHz+
Maximum Wi-Fi Bandwidth 3.9Gbps
Bluetooth Technology Yes
Wi-Fi Threat Sensor Yes
Integrated Antennas 6
Maximum Associated Devices 480
Max SSIDs 16
Max VLAN 64
Wired Uplinks - support four modes 802.3ad (aggregate traffic), broadcast, link-backup (failover), load balancing , mirrored 2-1GbE
Maximum Power Consumption 20W - 802.3at PoE+ compatible

Technical Specifications

Features Specifications
RF Management Dynamic channel configuration Dynamic cell size configuration Monitor radio for threat assessment and mitigation Wired and Wireless RMON / Packet Captures Radio assurance for radio self-test and healing RF monitor 2.4 & 5GHz Honeypot Control – Increase available 2.4 & 5GHz wireless device density through management of spurious 2.4 & 5GHz association traffic. 802.11ac Beamforming
High Availability Supports hot stand-by mode for mission critical areas
Environmentally Friendly Supports ability to turn off radios based on schedule configuration
Wired Protocols IEEE 802.11a, 802.11ac, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11w
IEEE 802.3 10BASE-T, IEEE 802.3.u 100BASE-TX , 1000BASE-T, 802.3ab 1000BASE-T
IEEE 802.3ad– Link aggregation
IEEE 802.1d – Spanning tree
IEEE 802.1p – Layer 2 traffic prioritization
DHCP option 82
IPv6 Support (in CLI only) IPv4 and IPv6 dual stack client support
IPv6 only network
Increase wireless device density through control of unnecessary IPv6 traffic over IPv4 only networks
IPv6 functions: IP addressing, DNS, filters, application control, syslog, SNMP management, SSH, Telnet, FTP, DHCP
RFC Support RFC 768 UDP
RFC 791 IP
RFC 2460 IPV6 (Bridging only)
RFC 1122
Security WPA
IEEE 802.11i WPA2, RSN
RFC 1321 MD5 Message-digest algorithm
RFC 2246 TLS protocol version 1.0
RFC 3280 Internet X.509 PKI certificate and CRL profile
RFC 4347 Datagram transport layer security
RFC 4346 TLS protocol version 1.1
Encryption Types Open, WEP, TKIP-MIC: RC4 40, 104 and 128 bits
SSL and TLS: RC4 128-bit and RDA 1024 and 2048 bit
  • IEEE 802.1x
  • RFC 2548 Microsoft vendor-specific RADIUS attributes
  • RFC 2716 PPP EAP-TLS
  • RFC 2865 RADIUS Authentication
  • RFC 2866 RADIUS Accounting
  • RFC 2867 Tunnel Accounting
  • RFC 2869 RADIUS Extensions
  • RFC 3576 Dynamic Authorizations extensions to RADIUS Authentication
  • RFC 3579 RADIUS Support for EAP
  • RFC 3748 EAP-PEAP
  • RFC 5216 EAP-TLS
  • RFC 5281 EAP-TTLS
  • RFC 2284 EAP-GTC
  • RFC 4186 EAP-SIM
  • RFC 3748 Leap Passthrough
  • RFC 3748 Extensible Authentication Protocol
  • Web Page Authentication
  • WPR, Landing Page, Redirect
  • Supports internal/external WPR, Landing Page and Authentication
  • Supports EasyPass Access Services
Regulatory Compliance EMC, Safety and Wireless
  • FCC CFR 47 Part 15, Class B
  • ICES-003 Class B
  • FCC Subpart C 15.247
  • FCC Subpart E 15.407
  • RSS-247
  • EN 301 893
  • EN 300 328
  • EN 301 489 1 & 17
  • EN 62311
  • EN 55022/EN 55024/EN 55032
  • AS/NZS4268 + CISPR22
  • Safety
  • IEC 60950-1
  • EN 60601-1-2/EN 60950-1
  • UL 60950-1
  • CSA 22.2 No.60950-1-03
Environmental Specifications Operating Temperature: 0-50°C, 5-90% humidity, non-condensing
Storage Temperature: -40°C to 70°C
Channel Support 2.4GHz
(based on country code selection)
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
Channel Support 5GHz
(based on country code selection)
U-NII-1 – Non-DFS channels
36 40 44 48
U-NII-2A DFS channels*
52 56 60 64
U-NII-2C DFS channels*
100 104 108 112 116 120 124 128 132 136 140 144
U-NII-3 Non-DFS channels
149 153 157 161 165
Management Interfaces Command Line Interface (accessible via SSH or Telnet) Web (https) Xirrus Management System (XMS)
  • SNMP v1, v2c, v3
  • RFC 854 Telnet
  • RFC 1155 Management Information for TCP/IP Based Internets
  • RFC 1156 MIB, RFC 1157 SNMP
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 SNMP MIB II
  • RFC 1215 Traps for use with the SNMP
  • RFC 1350 TFTP
  • RFC 1643 Ethernet MIB
  • RFC 2030 SNTP
  • RFC 2578 SMIv2 and combine with previous SNTP
  • RFC 2579 Textual Conventions for SMIv2
  • RFC 2616 HTTP 1.1
  • RFC 2665 Definitions of Managed Objects for the Ethernet Like Interface Types
  • RFC 2674 Managed Objects for Bridges with Traffic Classes, Multicast Filtering and VLANs
  • RFC 2819 RMON Management Information Base
  • RFC 2863 The Interface Group MIB
  • RFC 3164 BSD Syslog Protocol
  • RFC 3414 User-based Security Model (USM) for version 3 of SNMPv3
  • RFC 3416 Protocol operations of SNMPv2
  • RFC 3417 Transport Mappings for SNMP
  • RFC 3418 MIB for SNMP
  • RFC 3584 Coexistence between V1, V2 and V3 of the Internet-standard Network Management Framework
  • RFC 3636 Definitions of Managed Objects for IEEE Xirrus Private MIBs
  • Integration with Splunk for accurate search and analysis of intra-organizational IT events
  • Netflow Export v9 and IPFIX compatibility allows for IP traffic statistics collection
  • RFC 6455 Two way WebSocket based communication protocol
  • STOMP Simple Text Oriented Message Protocol for message oriented middleware


+ Some features may not be available on XD2 APs * Available only on 802.11ac platforms
