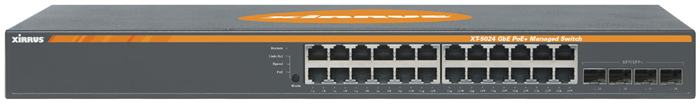

Xirrus XT-5024
24 port Enterprise-Class L2+ Gigabit Managed Access Switch with 802.3at PoE+, and 4 1/10G SFP+ Ports

Xirrus XT-5024

Xirrus XT Series
Xirrus XT Access Switch Series
XT-5024 24 port L2+ GigE managed switch with 4 SFP+ ports, PoE+, Stacking
*Software and Hardware Support Purchase Required
#XT-5024
Our Price: $1,900.00

Click here to jump to more pricing!

Overview:

The XT access switch series is an enterprise class, advanced Layer 2+ switching platform. The XT access switch series along with the Xirrus XR wireless LAN AP/Array series delivers enterprises a unified access layer that is simple to manage yet provides powerful capabilities to support advanced applications. XT switches and XR wireless LAN AP/Arrays are manageable by a single management platform, the Xirrus Management System (XMS), available in an on-premise virtual instance or a cloudbased version.

XT Series access switches are available in two models—24-port and 48-port GigE switches. Both switches have four 10GigE uplinks for high bandwidth access to applications and content.

The XT Series access switches support advanced power management with 802.11at (PoE+) and 802.11af (PoE) on every port. Power is dynamically managed across all switch ports to power access points, VoIP phones, IP surveillance cameras, and other PoE/PoE+ compliant devices.

The XT Series access switches can be deployed at the campus edge, in remote offices, and in workgroup environments.The access network can be virtualized with stacking over the SFP+ ports, enabling IT administrators to expand the edge capacity easily and simplify management of the entire stack with a single IP address.

Benefits:


“Single Pane of Glass” Management of Wired and Wireless Networks

The Xirrus unified access layer is managed by the Xirrus Management System (XMS), providing single pane of glass management for both Xirrus wired and wireless networks. The XMS is a comprehensive platform that provides in-depth visibility into users, devices, applications, and traffic on the network, in addition to complete configuration management of the wired and wireless networks. The XMS is available in onpremise and cloud-hosted options.

Ample Power for Unified Access Networks

The XT Series access switches provide Power-over-Ethernet (PoE/PoE+) to power IP-based devices such as IP phones, wireless APs, and IP video cameras. The XT-5024 provides up to 370 W and XT-5048 up to 779W of power. The intelligent power management scheme built into the switches optimizes the power distribution based on the capabilities of the end IP devices. Power is dynamically pooled from the power supply across all the ports. The XT-5048 switches also support external redundant power supplies (RPS) for high availability.

Auto Activation and Zero-Touch Provisioning

The XT Series access switches support* Xirrus Mobilize—a cloud-based provisioning service that automates and simplifies IT deployment with plug-and-play networking. Upon initial power up at installation, Xirrus switches are auto-discovered by Mobilize which automatically updates to latest firmware levels and provides initial configuration. This zero-touch provisioning completely eliminates manual IT intervention, streamlining processes to configure and provision the switches. Xirrus Mobilize can be implemented with or without the XMS across a unified wired and wireless Xirrus network.

Scalable Network Edge with Stacking

Multiple switches can be stacked together to simplify management using one IP address. Switches can be added into the stack as the capacity demand grows, for a maximum of eight nodes per stack.

Advanced Security

The XT Series access switches provide advanced security features, particularly essential to support guest access and onboarding of non-IT issued devices. The switches support AAA based on RADIUS and 802.1x. IP spoofing with IP source guard blocks undesirable traffic with ACLs and provides port security with port/MAC locking.

Easy to Deploy

The Xirrus XT enterprise-class switches simplify integration with existing wired network infrastructure and deliver a reliable, robust, high performance Gigabit wired access network.

Unified Management

The Xirrus Management System manages the unified wired and wireless Xirrus network – Enterprise on Hyper-V or VMware, providing an easy-to-use, single view management console to simplify IT operations.

Scalable Capacity

Switches can be stacked together to simplify management with a single IP address. Network capacity can be added into the stack as the demand for bandwidth and connectivity grows, up to eight nodes per stack. Xirrus XT switches support up to 40Gbps of high bandwidth access to the core of the network.

Intelligent Power Over Ethernet

Intelligent power management optimizes power distribution based on end device capability and provides Power over Ethernet for IP-based devices including IP phone, Wi-Fi APs and IP video.

Specifications:


Models: XT-5024 XT-5024
Physical Specifications
Dimension 17.4" (W) X 1.73" (H) X 15.15" (D) 17.4" (W) X 1.73" (H) X 15.15" (D)
Interfaces Uplink: 4 SPF+ 1/10Gbps
Downlink: 24 ports – 10/100/1000Mbps RJ-45
DB9 Console Port
Uplink: 4 SPF+ 1/10Gbps
Downlink: 48 ports – 10/100/1000Mbps RJ-45
DB9 Console Port
Weight 8.16 lbs 11lbs
Standard Features
Line Rate Switching (64 byte packets) 95.23Mpps 130.94Mpps
Line Rate Switching (Gigabits per sec) 128Gbps 176Gbps
Copper Interfaces 24 10/100/1000Mbps 48 10/100/1000Mbps
PoE Budget (Pooled across all ports) 370 Watts
802.3af/802.3at on all ports
Up to 38W on first 12 ports
779 Watts
802.3af/802.3at on all ports
Up to 38W on first 12 ports
VLANs 4096 4096
Concurrent Active VLANs 4000 4000
Redundant Power No External RPS
Power 100-240 VAC 50-60 Hz 100-240 VAC 50-60 Hz
Certification CE Mark
UL 60950-1:2003
EN 60950:2000
FCC Class A
CE Mark
UL 60950-1:2003
EN 60950:2000
FCC Class A
Operating Temperature 0˚ to 40˚ C 0˚ to 40˚ C
Storage Temperature -20°C to +70°C -20°C to +70°C
Operating Humidity 10% to 90% (non-condensing) 10% to 90% (non-condensing)
Green 802.3az Auto port on/off
Cable Length Detection
802.3az Auto port on/off
Cable Length Detection
Layer 2 Switching
General Jumbo Frame Support – 9KB
MAC Table – 32,000 entries
Spanning Tree Spanning Tree 802.1d
Rapid Spanning Tree 802.1w
Multiple Spanning Tree 802.1s
Discovery LLDP (Link Layer Discovery Protocol)
802.1AB with LLDP-MED Extensions
Trunking LACP 802.3ad
26 groups total
8 ports per group
VLAN Port-based VLANs
802.1q tag-based VLANs
MAC-based VLANs
Management VLAN
Private VLAN Edge (PVE)
Voice VLAN
Generic VLAN Registration (GVRP)
IGMP IGMP Snooping – v1 / v2 / v3
IGMP Querier
IGMP Proxy MLDv1 / v2 Snooping
IP IPv4
IPv6
Security 802.1x
IGMP-RADIUS based 802.1x Dynamic VLANs
Layer 2 Isolation Private VLAN Edge (PVE)
Port Security – MAC / port mapping lock
IP Source Guard
RADIUS
TACACS+
Access Control List (ACL) – 256 entries
QoS Hardware Queues – 8 queues
Scheduling – Weighted Round Robin (WRR)
Scheduling – Strict Priority
Queue Assignment – DSCP
Queue Assignment – 802.1p / CoS
Classification – Port-based
Classification – 802.1p VLAN Priority-based
Classification – IPv4/v6 Precedence
Classification – Type of Service (ToS)
Classification – DSCP-based
Classification – DiffServ
Rate Limiting Ingress Policer
Egress Shaping and Rate Control
Per VLAN
Per Flow
Per Port
Management
Management Interface CLI via SSH v1 / v2
CLI via DB9 console port
Web GUI Interface
Manageable by Xirrus XMS-Enterprise*
Manageable by Xirrus XMS-Cloud (2015)*
Firmware Upgrade – HTTP(S) / TFTP
SNMP SNMP v1, v2c, v3
*Roadmap Item

Documentation:

Download the Xirrus XT Series Switches Datasheet (PDF).

Download the Xirrus XT Series Switches Specsheet (PDF).

Pricing Notes:

Xirrus XT Series
Xirrus XT Access Switch Series
XT-5024 24 port L2+ GigE managed switch with 4 SFP+ ports, PoE+, Stacking
*Software and Hardware Support Purchase Required
#XT-5024
Our Price: $1,900.00
Hardware Support
1 Year Premium Hardware Support for XT-5024 Switch
#SU-HW-XT-5024-1
Our Price: $38.00
3 Year Premium Hardware Support for XT-5024 Switch
#SU-HW-XT-5024-3
Our Price: $97.00
5 Year Premium Hardware Support for XT-5024 Switch
#SU-HW-XT-5024-5
Our Price: $152.00
Software Support
1 Year Premium Software Support for XT-5024 Switch
#SU-SW-XT-5024-1
Our Price: $76.00
3 Year Premium Software Support for XT-5024 Switch
#SU-SW-XT-5024-3
Our Price: $194.00
5 Year Premium Software Support for XT-5024 Switch
#SU-SW-XT-5024-5
Our Price: $304.00
Accessories
1 meter 10GigE copper stacking cable for XT-5024/48 switches
#XT-STACK-CABLE-1M
Our Price: $180.00
1000BASE-SX, 850nm, multi-mode 1GigE SFP transceiver for up to 300m
#XT-SFP-1GE-SX
Our Price: $150.00
1000BASE-LX, 1300nm single mode 1GigE SFP transceiver for up to 10km
#XT-SFP-1GE-LX
Our Price: $250.00
10GBASE-SR, 850nm, multi-mode 10GigE SFP+ transceiver for up to 300m
#XT-SFP-10GE-SR
Our Price: $700.00
10GBASE-LR, 1310nm, single-mode 10GigE SFP+ transceiver for up to 10km
#XT-SFP-10GE-LR
Our Price: $1200.00
