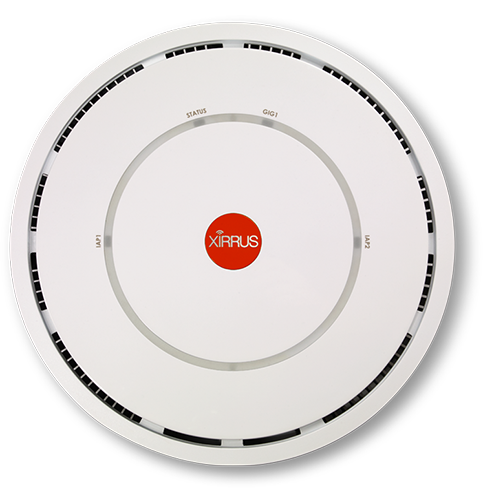

Xirrus XD4-240 Indoor Access Point
Supports 4X More Users

Xirrus XD4-240 Series

Xirrus Products
XD Indoor Access Points Series
XD High Density AP with 4 - 4x4 802.11ac Wave 2 radios with directional antennas
#XD4-240
Our Price: $2,195.00

Click here to jump to more pricing!

Overview:

Thousands connecting at once? Xirrus XD (Extreme Density) Wi-Fi access points deliver extreme performance in high-density environments such as classrooms, auditoriums, libraries and training centers. Integrated with four 802.11ac radios with high-gain directional antennas, XD4 APs support four times more users while decreasing cost of ownership up to 50% versus 2-radio solutions.

Xirrus offers two XD4 models: 3×3 Wave 1 (1.3Gbps) and 4×4 Wave 2 (3.47Gbps) 802.11ac options. Custom-build the system that best meets your needs. Accessories such as deployments kits, enclosures, and mounting options make installation easy.

Xirrus XD4 APs are designed with a wireless controller, firewall, and threat sensor built directly into the device. This reduces equipment requirements by 75%. And the scalable design lets you more efficiently upgrade your network.

Choose between cloud-based or on-premise network management. Xirrus solutions offer tools that let IT administrators manage users, devices, applications, and traffic with complete visibility.

At a Glance

  • 4-radio all 802.11ac Wave2 AP delivers highest density
  • Supports four times more users
  • Reduces equipment deployed by 75%
  • Decreases total cost of ownership up to 50%

Benefits:

WHAT MAKES XIRRUS DIFFERENT?

Xirrus Xtreme Density (XD) Wi-Fi delivers the highest density Wi-Fi available in the industry today. Xirrus XD4 is the only 4-radio all 802.11ac AP available in the market, supports four times more users, reduces the amount of equipment deployed by 75 percent and decreases total cost of ownership by up to 50 percent versus competing solutions.

UNPARALLELED PERFORMANCE

The XD4 integrates four high speed 802.11ac capable radios and optimizes performance with automated RF configuration. The XD platform, paired with award-winning Xirrus XMS cloud or on-premise management system, delivers groundbreaking performance and simplicity.

BEST RETURN ON INVESTMENT

TurboXpress, featured on all XD APs, allows administrators to configure every radio on the AP for high-speed 802.11ac operation, with the click of a mouse, providing an instant performance boost of up to 6x. Xirrus XD is the only solution in the industry that can add wireless capacity instantaneously without adding AP’s

POWERFUL SERVICES

Stream-line IT operations with the Xirrus Management System (XMS), hosted either in the cloud or on-premise. XD APs integrate a set of powerful network services to optimize performance and ensure enterprise-grade wireless reliability including:

  • acXpress: Separate high-speed 802.11ac from low-speed Wi-Fi clients to optimize performance for all clients and ensure the best user experience.
  • Application Control: Ensure predictable Wi-Fi traffic performance and enforce policies for business-critical applications through integrated application visibility and controls over 1400 applications directly in the AP

MOST RELIABLE WI-FI

XD Wi-Fi integrates the controller function into every AP, reducing system costs and improving overall system reliability. With most traditional wireless solutions, a central controller oversees the operation and maintenance of tens to hundreds of APs at once. In these networks, a single controller failure will impact the operation of all connected APs and their users.

ADVANTAGES:

  • Cloud-managed Wi-Fi option with zero-touch provisioning
  • Integrated application control to ensure reliable Wi-Fi performance
  • Distributed intelligence with integrated controller for no single point of failure
  • Superior user experience with optimized RF controls
  • Simplified user access with EasyPass for guests, employees, and BYOD

Specifications:

The Xirrus XD4-130 (11ac Wave 1) and XD4-240 (11ac Wave 2), High Density Access Points are are the highest capacity Wi-Fi APs on the planet and deliver massive scalability to meet the demands of today’s mobile users. These High Density APs feature powerful multi-core integrated controller, application-level intelligence, automated provisioning, and optional cloud management. Xirrus High Density APs are ideal for providing robust wireless connectivity in areas of medium to high density such as 1:1 classrooms, lecture halls, meeting rooms, open floor office areas and for Internet of Things (IOT) sensor networks. These highly extensible APs easily integrate with 3rd party software through standards based JSON APIs and the XD4-240 with Bluetooth Low Energy (BLE) radio is built ready for advanced capabilities such as location services.

Configuration Specifications

XD4-130 XD4-240
Chassis Dimensions 10” 10”
Supported Standards 802.11a/b/g/n/ac (Wave1) 802.11 a/b/g/n/ac (Wave 2)
Total Number of Radios 4 - 2.4GHz / 5GHz software defined radios 4 - 2.4GHz / 5GHz software defined radios
Radio Type 3x3 11ac 1.3Gbps 4x4 11ac 3.47Gbps
MIMO Technology SU-MIMO MU-MIMO: 16 Streams
Maximum Wi-Fi Bandwidth 5.2Gbps 13.88Gbps
Dedicated Wi-Fi Threat Sensor Yes Yes
Bluetooth Technology No Yes
Antennas 12 (Internal) 16 (Internal)
Maximum Wi-Fi Backhaul 3.9Gbps 10.4Gbps
Maximum Associated Users 780 780
Wired Uplinks
802.3ad (Aggregate traffic), broadcast,
link-backup (failover), load balance, mirrored
2 - 1GbE 1 - 2.5GbE,
1 - GbE
Maximum Power Consumption 25.5W (802.3at PoE) 46W
Weight 2.5lbs 2.3lbs

Technical Specifications

Features Specifications
RF Management Dynamic channel configuration
Dynamic cell size configuration
Monitor radio for threat assessment and mitigation
Wired and Wireless RMON / Packet Captures
Radio assurance for radio self test and healing
RF monitor
2.4 & 5Ghz Honeypot Control – Increase available 2.4 & 5Ghz wireless device density through management of spurious 2.4 & 5Ghz association traffic.
Re-use and increase wireless device density through tight power controls.
High Availability Supports hot stand-by mode for mission critical areas
Environmentally Friendly Supports ability to turn off radios based on schedule configuration
Wireless Protocols IEEE 802.11a, 802.11ac, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11w
Wired Protocols IEEE 802.3 10BASE-T, IEEE 802.3.u 100BASE-TX , 1000BASE-T, 802.3ab 1000BASE-T
IEEE 802.1q – VLAN tagging
IEEE 802.3ad– Link aggregation
IEEE 802.1d – Spanning tree
IEEE 802.1p – Layer 2 traffic prioritization
IPv6 Control – Increase wireless device density through control of unnecessary IPv6 traffic on IPv4-only networks.
DHCP option 82
RFC Support RFC 768 UDP
RFC 791 IP
RFC 2460 IPV6 (Bridging only)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 1122 Requirements for internet hosts – communication layers
RFC 1542 BOOTP
RFC 2131 DHCP
Security WPA
IEEE 802.11i WPA2, RSN
RFC 1321 MD5 Message-digest algorithm
RFC 2246 TLS protocol version 1.0
RFC 3280 Internet X.509 PKI certificate and CRL profile
RFC 4347 Datagram transport layer security
RFC 4346 TLS protocol version 1.1
Encryption Types Open, WEP, TKIP-MIC: RC4 40, 104 and 128 bits
SSL and TLS: RC4 128-bit and RDA 1024 and 2048 bit
Authentication IEEE 802.1x
RFC 2548 Microsoft vendor-specific RADIUS attributes
RFC 2716 PPP EAP-TLS
RFC 2865 RADIUS Authentication
RFC 2866 RADIUS Accounting
RFC 2867 Tunnel Accounting
RFC 2869 RADIUS Extensions
RFC 3576 Dynamic Authorizations extensions to RADIUS
RFC 3579 RADIUS Support for EAP
RFC 3748 EAP-PEAP
RFC 5216 EAP-TLS
RFC 5281 EAP-TTLS
RFC 2284 EAP-GTC
RFC 4186 EAP-SIM
RFC 3748 Leap Passthrough
RFC 3748 Extensible Authentication Protocol
Web Page Authentication
WPR, Landing Page, Redirect
Supports Internal/External WPR, Landing Page and Authentication
Supports EasyPass Access Services
Regulatory Compliance EMC, Safety and Wireless
  • FCC CFR 47 Part 15, Class B
  • ICES-003 Class B
  • FCC Subpart C 15.247
  • FCC Subpart E 15.407
  • RSS-247
  • EN 301 893
  • EN 300 328
  • EN 301 489 1 & 17
  • EN 62311
  • EN 55022 (CISPR 22)
  • AS/NZS4268 + CISPR22
Safety
  • IEC 60950-1
  • EN 60950-1
  • UL 60950-1
  • CSA 22.2 No.60950-1-03
  • AS/NZS 60950.1
  • Air handling space (UL 2043)
Environmental Specifications Operating Temperature: 0-55C, 0-90% humidity, non-condensing
Storage Temperature: -40C to 70C
Channel Support 2.4GHz (Channel selections are based upon country code selections) 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
Channel Support 5GHz (Channel selections are based upon country code selections) U-NII-1 – Non-DFS channels
36 40 44 48
U-NII-2A DFS channels*
52 56 60 64
U-NII-2C DFS channels*
100 104 108 112 116 120 124 128 132 136 140 144
U-NII-3 Non-DFS channels
149 153 157 161 165
Management Interfaces Command line interface
Web interface (http / https)
Xirrus Management System (XMS)
XMS-Cloud
XMS-Enterprise
Management
  • SNMP v1, v2c, v3
  • RFC 854 Telnet
  • RFC 1155 Management Information for TCP/IP Based Internets
  • RFC 1156 MIB
  • RFC 1157 SNMP
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 SNMP MIB II
  • RFC 1215 A Convention for Defining Traps for use with the SNMP
  • RFC 1350 TFTP
  • RFC 1643 Ethernet MIB
  • RFC 2030 Simple Network Time Protocol SNTP
  • RFC 2578 Structure of Management Information Version 2 (SMIv2)
  • RFC 2579 Textual Conventions for SMIv2
  • RFC 2616 HTTP 1.1
  • RFC 2665 Definitions of Managed Objects for the Ethernet Like Interface Types
  • RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering and Virtual LAN Extensions
  • RFC 2819 Remote Network Monitoring Management Information Base
  • RFC 2863 The Interface Group MIB
  • RFC 3164 BSD Syslog Protocol
  • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
  • RFC 3416 Version 2 of the Protocol Operations for the Simple Network Management Protocol (SNMP)
  • RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)
  • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
  • RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework
  • RFC 3636 Definitions of Managed Objects for IEEE Xirrus Private MIBs
  • Integration with Splunk for accurate search and analysis of intra-organizational IT events
  • Netflow Export v9 and IPFIX compatibility allows for IP traffic statistics collection

Receive Sensitivity

2.4 GHz XD4-130 XD4-240
802.11b
1 Mbps -93 -95
11Mbps -80 -88
802.11g
6 Mbps -93 -93
54 Mbps -80 -75
802.11n HT20
MSC0 -93 -91
MSC7 -79 -72
802.11n HT40
MSC0 -93 -88
MSC7 -77 -69
5 GHz XD4-130 XD4-240
802.11a
6 Mbps -92 -89
54 Mbps -78 -74
802.11n HT20
MSC0 -93 -90
MSC7 -75 -71
802.11n HT40
MSC0 -91 -87
MSC7 -73 -68
802.11ac VHT20
MSC0 -91 -90
MSC9 -67 -66
5 GHz XD4-130 XD4-240
802.11ac VHT40
MSC0 -88 -87
MSC9 -66 -61
802.11ac VHT80
MSC0 -86 -84
MSC9 -64 -58
802.11ac VHT160
MSC0
MSC9



+ Some features may not be available on XD2 APs * Available only on 802.11ac platforms

Documentation:

Download the Xirrus XD4-240 Indoor Access Point Datasheet (PDF).
