Xirrus XD4-130 High Density Access Points
Designed With Ultra Performance And Density

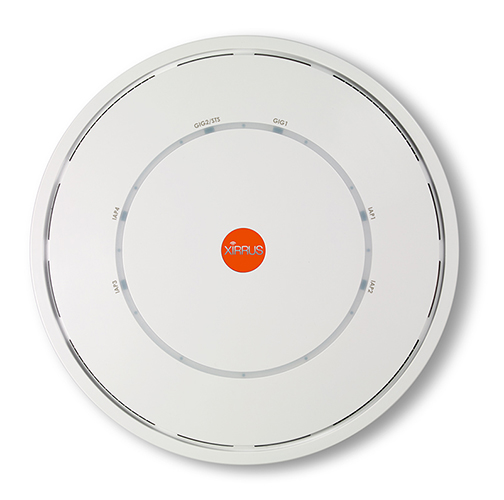

Xirrus XD4-130

Xirrus Products
High Density Access Points Series
XD4-130 XD High Density AP with 4 1.3Gbps 802.11ac radios and directional antennas. PoE+ compatible.
#XD4-130
Our Price: $1,595.00

Click here to jump to more pricing!

Overview:

The XD family is designed with ultra performance and density. The family currently consists of XD2 and XD4. In addition to the XR family, the XD2 is an 11ac wave 2 product. XD supports all the advanced feature sets found on the XR600.

What Makes Xirrus Different?

Xirrus Xtreme Density (XD) Wi-Fi are the highest density Wi-Fi Access Points (APs) that deliver the fastest Wi-Fi available in the industry. Xirrus XD4 is the only 4-radio all 802.11ac AP available in the market, supports four times more users, reduces the amount of equipment deployed by 75 percent and decreases total cost of ownership by up to 50 percent versus competing products.

At a Glance

  • 4-radio all 802.11ac AP delivers highest density
  • Supports four times more users
  • Reduces equipment deployed by 75 percent
  • Decreases total cost of ownership up to 50%

Benefits:

Unparalleled Performance

The XD4 integrates four 802.11ac capable radios and optimizes performance with automated RF configuration. The XD platform, paired with Xirrus’ award winning XMS cloud management system, delivers groundbreaking performance and simplicity. The platform automatically chooses the best available bands and power level without IT intervention and customizes client connectivity for the best performance based on the capability of each device, delivering a true zero-touch experience.

Best Return on Investment

TurboXpress, featured on all XD APs, allows administrators to configure every radio on the AP for high-speed 802.11ac operation, with the click of a mouse, providing an instant Wi-Fi performance boost of up to 6x. The TurboXpress feature means that the Xirrus XD AP is the only solution in the industry that can add wireless capacity instantaneously without adding APs. In addition, TurboXpress provides unprecedented investment protection by enabling the ability to effortlessly address changing needs.

Powerful Services

Stream-line IT operations with the Xirrus Management System (XMS), hosted either in the cloud or on-premise. XD Wi-Fi integrates a set of powerful network services to optimize performance and ensure enterprise-grade wireless reliability including:

  • acXpress: Separate high-speed 802.11ac from low-speed Wi-Fi clients to optimize performance for all clients and ensure the best user experience.
  • Application Control: Ensure predictable Wi-Fi traffic performance and enforce policies for more than 1400 business-critical applications through integrated application visibility and control directly on the AP.

Most Reliable Wi-Fi

With most traditional wireless solutions, a central controller oversees the operation and maintenance of tens to hundreds of APs at once. In these networks, a single controller failure will impact the operation of all connected APs and their users. However as businesses add capacity to their network, they also need to add more controllers at significant expense and complexity. XD Wi-Fi integrates the controller function into every AP, reducing system costs and improving overall system reliability.

Specifications:

The Xirrus High Density Access Points are the highest capacity Wi-Fi APs on the planet and deliver massive scalability to meet the demands of today’s mobile users. These High Density APs feature powerful multi-core integrated controller, application-level intelligence, automated provisioning, and optional cloud management. The Xirrus High Density AP is ideal for providing robust wireless connectivity in areas of medium user density such as 1:1 classrooms, lecture halls, meeting rooms, open floor office area and for Internet of Things (IOT) sensor networks.

 XD4
Chassis Dimensions 10”
Supported Standards 802.11a/b/g/n/ac
Total Number of Radios 4
Radio Type 3x3 11ac 1.3Gbps
MIMO Technology SU-MIMO
Maximum Wi-Fi Bandwidth 5.2Gbps
Dedicated Wi-Fi Threat Sensor Yes
Antennas 12(Internal)
Maximum Wi-Fi Backhaul 3.9Gbps
Maximum Associated Users 780
Wired Uplinks
802.3ad
(Aggregate traffic), broadcast, link-backup (failover), load balance
2 - IGbE
Maximum Power Consumption 25.5W (PoE+)
Weight 2 .5lbs
RF Management Dynamic channel configuration Dynamic cell size configuration
Monitor radio for threat assessment and mitigation Wired and Wireless RMON / Packet Captures
Radio assurance for radio self test and healing
RF monitor
2.4 & 5Ghz Honeypot Control – Increase available 2.4 & 5Ghz wireless device density through management of
spurious 2.4 & 5Ghz association traffic.
Re-use and increase wireless device density through tight power controls.
High Availability Supports hot stand-by mode for mission critical areas
Environmentally Friendly Supports ability to turn off radios based on schedule configuration
Wireless Protocols IEEE 802.11a, 802.11ac, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11w
Wired Protocols IEEE 802.3 10BASE-T, IEEE 802.3.u 100BASE-TX , 1000BASE-T, 802.3ab 1000BASE-T
IEEE 802.1q – VLAN tagging IEEE 802.1AX – Link aggregation IEEE 802.1d – Spanning tree
IEEE 802.1p – Layer 2 traffic prioritization
IPv6 Control – Increase wireless device density through control of unnecessary IPv6 traffic on IPv4-only networks.
DHCP option 82
Carrier Applications Passpoint 2.0 Certification
RFC Support RFC 768 UDP
RFC 791 IP
RFC 2460 IPV6 (Bridging only) RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 1122 Requirements for internet hosts – communication layers RFC 1542 BOOTP
RFC 2131 DHCP
Security WPA
IEEE 802.11i WPA2, RSN
RFC 1321 MD5 Message-digest algorithm RFC 2246 TLS protocol version 1.0
RFC 3280 Internet X.509 PKI certificate and CRL profile RFC 4347 Datagram transport layer security
RFC 4346 TLS protocol version 1.1
Encryption Types Open, WEP, TKIP-MIC: RC4 40, 104 and 128 bits
SSL and TLS: RC4 128-bit and RDA 1024 and 2048 bit

Authentication IEEE 802.1x
RFC 2548 Microsoftvendor-specific RADIUS attributes RFC 2716 PPP EAP-TLS
RFC 2865 RADIUS Authentication RFC 2866 RADIUS Accounting RFC 2867 Tunnel Accounting
RFC 2869 RADIUS Extensions
RFC 3576 Dynamic Authorizations extensions to RADIUS RFC 3579 RADIUS Support for EAP
RFC 3748 EAP-PEAP

RFC 5216 EAP-TLS
RFC 5281 EAP-TTLS
RFC 2284 EAP-GTC
RFC 4186 EAP-SIM
RFC 3748 Leap Passthrough
RFC 3748 Extensible Authentication Protocol Web Page Authentication

  • WPR, Landing Page, Redirect
  • Support for Internal WPR, Landing Page and Authentication
  • Support for External WPR, Landing Page and Authentication
  • Support for Xirrus Guest Access System
Regulatory Compliance

CE Mark

  • EU CE Mark
  • EN300 328 V1.8.1,
  • EN 301 893 V1.7.1
  • EN 301 489-1 V1.9.2, EN 301 489-17 V2.2.1
  • EN55022/EN55024
  • US FCC Part 15 subparts B, C, E
  • FCC [47 C.F.R. 1.1307(b), 1.1310, 2.1091, 2.1093]
  • Canada ICES-003
  • Canada RSS-247
  • Canada RSS-102

Safety

  • UL60950-1 2nd Edition
  • CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12
  • EN 60950-1:2006/A2:2013
  • IEC 60950-1:2005/A2:2013
  • EN 60950-22:2006+AC:2008 (Outdoor Untis)
  • UL60950-22 ( Outdoor Units)
  • CSA C22.2 No 60950-22-07 (Outdoor Units)
Environmental Specifications Operating Temperature: 0-55C, 0-90% humidity, non-condensing Storage Temperature:  -40C to 70C
Channel Support 2.4GHz
(Channel selections are based upon country code selections)
1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
Channel Support 5GHz
(Channel selections are based upon country code selections)
U-NII-1 – Non-DFS channels 36 40 44 48
U-NII-2A DFS channels* 52 56 60 64
U-NII-2C DFS channels*
100 104 108 112 116 120 124 128 132 136 140 144
U-NII-3 Non-DFS channels 149 153 157 161 165
Management Interfaces Command line interface Web interface (http / https) Xirrus Management System (XMS) XMS-Cloud
XMS-Enterprise
Management SNMP v1, v2c, v3 RFC 854 Telnet
RFC 1155 Management Information for TCP/IP Based Internets
RFC 1156 MIB
RFC 1157 SNMP
RFC 1212 Concise MIB Definitions RFC 1213 SNMP MIB II
RFC 1215 A Convention for Defining Traps for use with the SNMP
RFC 1350 TFTP
RFC 1643 Ethernet MIB
RFC 2030 Simple Network Time Protocol SNTP RFC 2578 Structure of Management Information Version 2 (SMIv2)
RFC 2579 Textual Conventions for SMIv2 RFC 2616 HTTP 1.1
RFC 2665 Definitions of Managed Objects for the Ethernet Like Interface Types
RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering and Virtual LAN Extensions
RFC 2819 Remote Network Monitoring Management Information Base RFC 2863 The Interface Group MIB
RFC 3164 BSD Syslog Protocol
RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
RFC 3416 Version 2 of the Protocol Operations for the Simple Network Management Protocol (SNMP)
RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework
RFC 3636 Definitions of Managed Objects for IEEE Xirrus Private MIBs Integration with Splunk for accurate search and analysis of intra- organizational IT events
Netflow Export v9 and IPFIX compatibility allows for IP traffic statistics collection
* Currently not available on select models. DFS channels will be available upon regulatory certification.

Receive Sensitivity:

RATE 2.4GHz
RX Sensitivity (dBm)
5GHz
RX Sensitivity (dBm)
802.11a
6Mbps   -92
9Mbps   -92
12Mbps   -91
18Mbps   -90
24Mbps   -87
36Mbps   -83
48Mbps   -79
54Mbps   -78
802.11b
1Mbps -93
2Mbps -90
5.5Mbps -87
11Mbps -84
802.11g
6Mbps -93
9Mbps -93
12Mbps -92
18Mbps -91
24Mbps -90
36Mbps -88
48Mbps -83
54Mbps -80
802.11n HT20
MCS 0 -93 -93
MCS 1 -93 -90
MCS 2 -92 -88
MCS 3 -88 -85
MCS 4 -86 -81
MCS 5 -82 -77
MCS 6 -80 -76
MCS 7 -79 -75
MCS 8 -95 -93
MCS 9 -92 -90
MCS 10 -89 -88
MCS 11 -87 -85
MCS 12 -83 -81
MCS 13 -79 -77
MCS 14 -78 -76
MCS 15 -76 -75
MCS 16 -92 -93
MCS 17 -91 -90
MCS 18 -89 -88
MCS 19 -86 -85
MCS 20 -82 -81
MCS 21 -78 -77
MCS 22 -77 -76
MCS 23 -76 -75
RATE 2.4GHz
RX Sensitivity (dBm)
5GHz
RX Sensitivity (dBm)
802.11n HT40
MCS 0 -93 -91
MCS 1 -92 -88
MCS 2 -90 -86
MCS 3 -87 -83
MCS 4 -84 -79
MCS 5 -80 -75
MCS 6 -78 -74
MCS 7 -77 -73
MCS 8 -92 -90
MCS 9 -89 -87
MCS 10 -87 -85
MCS 11 -84 -82
MCS 12 -81 -78
MCS 13 -77 -74
MCS 14 -75 -73
MCS 15 -74 -72
MCS 16 -91 -90
MCS 17 -88 -87
MCS 18 -86 -85
MCS 19 -83 -82
MCS 20 -79 -78
MCS 21 -75 -74
MCS 22 -74 -73
MCS 23 -73 -72
802.11ac VHT20
MCS 0   -91
MCS 1   -88
MCS 2   -86
MCS 3   -83
MCS 4   -79
MCS 5   -75
MCS 6   -73
MCS 7   -71
MCS 8   -69
MCS 9   -67
802.11ac VHT40
MCS 0   -88
MCS 1   -85
MCS 2   -83
MCS 3   -80
MCS 4   -76
MCS 5   -72
MCS 6   -71
MCS 7   -69
MCS 8   -67
MCS 9   -66
802.11ac VHT80
MCS 0   -86
MCS 1   -83
MCS 2   -81
MCS 3   -78
MCS 4   -74
MCS 5   -70
MCS 6   -69
MCS 7   -68
MCS 8   -66
MCS 9   -64

Comparision:

Right Sized Wi-Fi For Every Use

Model XR-320 X2 XR-600 XD2 XD4 XR-2000 XR-4000 XR-6000
Max Number of Radios 2 2 2 2 4 4 8 16
Technology 11ac Wave 1 11ac Wave 1 11ac Wave 1 11ac Wave 2 11ac Wave 1 11ac Wave 1 11ac Wave 1 11ac Wave 1
Technology Upgradable NA NA NA NA NA 11ac Wave 2 11ac Wave 2 11ac Wave 2
TurboXpress (all radios 11ac) NA NA Yes Yes Yes Yes Yes Yes
Controller Integrated Integrated Integrated Integrated Integrated Integrated Integrated Integrated
Uplinks 1 GigE 1 GigE 2 GigE 2 GigE 2 GigE 2 GigE 2 GigE 4 GigE/1-10 GigE
Example Uses Hotels / Dorms / Hospitals / Offices Offices / Hotels / Classrooms / Retail Offices / Classrooms / Hospitals / Retail Dense Offices / Classrooms / Hospitals Dense Offices / Classrooms / Conf Rooms Dense Offices / Classrooms / Conf Rooms Libraries / Auditoriums / Conventions Auditoriums / Conventions / Arenas

Outdoor Wi-Fi Portfolio

Product Series XR-520H XH2  XR-2425H  Outdoor Enclosures / HD Access Points
Number of Radios 2 2 4 4-16
Technology 802.11n 802.11ac 802.11n 802.11ac
Technology Upgradable NA NA NA Yes – 11ac Wave 2
TurboXpress (all radios on 5GHz) Yes Yes Yes Yes
Controller Integrated Integrated Integrated Integrated
Uplinks 1 GigE 2 GigE 2 GigE Up to 4 GigE & 1-10 GigE
Example Uses General Coverage / Warehouses General Coverage / Stadiums/Arenas Outdoor Event Venues / Stadiums/Arenas Outdoor Event Venues / Stadiums/Arenas
