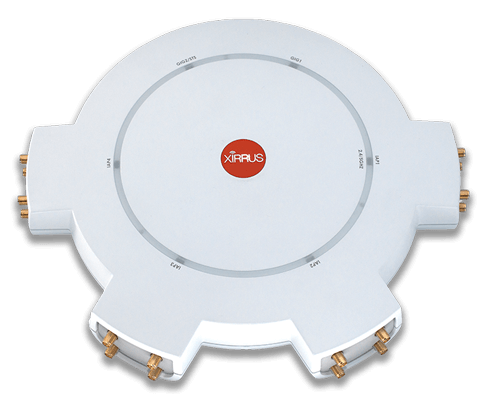

Xirrus XA4-240 Indoor Access Point
Supports 4X More Users

Xirrus XA4-240 Series

Xirrus Products
XA Indoor Access Points Series
XA High Density AP with 4 - 4x4 802.11ac Wave 2 radios with RP-SMA antenna connectors for externally connected antennas
#XA4-240
Our Price: $2,195.00

Click here to jump to more pricing!

Overview:

SUPERIOR PERFORMANCE FOR HIGH DENSITY ENVIRONMENTS

With 802.11ac Wave 2 becoming the Wi-Fi operational standard, large venues can take advantage of the performance improvements multi-user MIMO (MU-MIMO) technology brings to high density environments. Xirrus XA4 Wave 2 High Density Access Points (APs) provide high Wi-Fi capacity in locations such as convention centers, airports, train stations and arenas. The plenum rated XA4 AP features external antennas for customization of Wi-Fi coverage in structures with high ceilings, long hallways or wide open spaces, delivering the robust performance needed to support thousands of Wi-Fi devices at once.

MONETIZE YOUR WI-FI SERVICE

Xirrus high capacity Wi-Fi includes intelligence to provide guest/visitor analytics. Location data allows venue operators to engage users with value added services such as wayfnding. Businesses can achieve meaningful user engagement and deliver differentiated services with rich brand experience and targeted interaction.

HIGHLIGHTS

FLEXIBLE CHOICES FOR GUEST CONNECTIVITY

The XA4 AP provides a range of connectivity options that enable simple, secure sign in for guests with EasyPass Access Services. Organizations can deliver simple guest access in multiple ways, including enforcing acceptable use policies, one-click access, allowing self-registration, and implementing sponsor workflow. Guests can alternatively connect using social media credentials without having to create a guest account every time at each venue. Wi-Fi access may be also controlled with a voucher code that can be integrated with point-of-sale systems.

HIGH PERFORMANCE IN CHALLENGING ENVIRONMENTS

With a single click, TurboXpress enables 5GHz operation on any radio, meaning the XA4 AP delivers up to 4 Wave 2 radios per AP for 4X the Wave 2 capacity of standard APs. Xirrus offers a choice of antennas to customize coverage in locations such as convention centers, arenas, warehouses, airports and train stations where high ceilings and wide open areas are common. XA4 APs are plenum-rated to provide flexibility to deploy where needed.

SECURE BYOD & IoT DEVICE ACCESS

Xirrus Wi-Fi solutions support all types of devices and operating systems. No captive portal is required to connect, simplifying the process for IoT devices that do not have browsers, such as Wi-Fi enabled lighting and climate controllers. Onboarding of new devices does not require an app, agent or certifcate downloads.

AT A GLANCE

  • EasyPass simplifies connectivity for Guest/BYOD/IoT
  • Connect up to 960 Wi-Fi devices on a single AP
  • 16 concurrent MU-MIMO device connectivity
  • Software-defined radios support 4X the Wave 2 capacity per AP
  • 1 High Density Wave 2 AP replaces up to 4 standard Wave 2 APs
  • Multi-Gig technology delivers high capacity uplinks

Benefits:

KEY BENEFITS

REDUCE OVERALL COST OF OWNERSHIP

Just one High Density Wave 2 access point replaces up to 4 standard Wave 2 access points. Businesses save money by having less hardware, cabling and power consumption. Fewer devices to manage also reduces the burden on IT staff.

DELIVER A CONNECTED EXPERIENCE EVERYWHERE

The XA4 AP delivers robust connectivity even in challenging locations with tall ceilings or long halls by directing radio frequency (RF) signals using directional external antennas. Xirrus technology supports constantly changing environments and always on connectivity for any kind of Wi-Fi device including low powered devices such as smartphones.

MONETIZE YOUR WI-FI SERVICE

Xirrus high capacity Wi-Fi includes intelligence to provide guest/visitor analytics. Location data allows venue operators to engage users with value added services such as wayfinding. Businesses can achieve meaningful user engagement, and deliver differentiated services with rich brand experience and targeted interaction.

Specifications:

The Xirrus XA4 High Density Access Point with external antenna connectors is the highest capacity plenum rated Wi-Fi AP on the planet and delivers massive scalability to meet the demands of today’s mobile users. This indoor High Density AP features powerful multi-core integrated controller, application-level intelligence, automated provisioning, and optional cloud management. The High Density AP provides the flexibility to connect various types of external antennas for unique coverages. This AP is ideal for providing robust wireless connectivity in locations such as convention centers, airports, train stations, bus stations, warehouses, and manufacturing facilities.

Configuration Specifications

  XA4-240
Chassis Dimensions 13”
Supported Standards 802.11 a/b/g/n/ac (Wave 2)
Total Number of Radios 4 total: 3 - 5GHz , 1 - 2.4GHz / 5GHz software programmable
Radio Type 4x4 11ac 3.47Gbps
MIMO Technology MU-MIMO: 16 streams
Channel Bonding up to 160MHz
Maximum Wi-Fi Bandwidth 13.88Gbps
Wi-Fi Threat Sensor Yes
Antennas 16 RP-SMA female Connectors
Maximum Associated Devices 960
Maximum SSIDs 16
Maximum VLANs 64
Wired Uplinks - support four modes 802.3ad (Aggregate traffic), broadcast, link-backup (failover), load balance 1 - 2.5GbE, 1 - GbE
Maximum Power Consumption 46W
Weight 5.5lbs
Features Specifications
RF Management Dynamic channel configuration
Dynamic cell size configuration
Monitor radio for threat assessment and mitigation
Wired and Wireless RMON / Packet Captures
Radio assurance for radio self test and healing
RF monitor
2.4 & 5GHz Honeypot Control – Increase available 2.4 & 5GHz wireless device density through management of spurious 2.4 & 5GHz association traffic.
Re-use and increase wireless device density through tight power controls.
High Availability Supports hot stand-by mode for mission critical areas
Environmentally Friendly Supports ability to turn off radios based on schedule configuration
Wireless Protocols IEEE 802.11a, 802.11ac, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11w
Wired Protocols IEEE 802.3 10BASE-T, IEEE 802.3.u 100BASE-TX , 1000BASE-T, 802.3ab 1000BASE-T, 802.3bz 2.5GBASE-T IEEE 802.1q – VLAN tagging IEEE 802.3ad – Link aggregation IEEE 802.1d – Spanning tree IEEE 802.1p – Layer 2 traffic prioritization DHCP option 82
IPv6 Support (in CLI only) IPv4 and IPv6 dual stack client support IPv6 only network Increase wireless device density through control of unnecessary IPv6 traffic over IPv4 only networks IPv6 functions: IP addressing, DNS, filters, application control, syslog, SNMP management, SSH, Telnet, FTP, DHCP clients
RFC Support RFC 768 UDP
RFC 791 IP
RFC 2460 IPV6 (Bridging only)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 1122 Requirements for internet hosts communication layers
RFC 1542 BOOTP
RFC 2131 DHCP
Security WPA
IEEE 802.11i WPA2, RSN
RFC 1321 MD5 Message-digest algorithm
RFC 2246 TLS protocol version 1.0
RFC 3280 Internet X.509 PKI certificate and CRL profile
RFC 4347 Datagram transport layer security
RFC 4346 TLS protocol version 1.1
Encryption Types Open, WEP, TKIP-MIC: RC4 40, 104 and 128 bits
SSL and TLS: RC4 128-bit and RDA 1024 and 2048 bit
Authentication
  • IEEE 802.1x
  • RFC 2548 Microsoft vendor-specific RADIUS attributes
  • RFC 2716 PPP EAP-TLS
  • RFC 2865 RADIUS Authentication
  • RFC 2866 RADIUS Accounting
  • RFC 2867 Tunnel Accounting
  • RFC 2869 RADIUS Extensions
  • RFC 3576 Dynamic Authorizations extensions to RADIUS
  • RFC 3579 RADIUS Support for EAP
  • RFC 3748 EAP-PEAP
  • RFC 5216 EAP-TLS
  • RFC 5281 EAP-TTLS
  • RFC 2284 EAP-GTC
  • RFC 4186 EAP-SIM
  • RFC 3748 Leap Passthrough
  • RFC 3748 Extensible Authentication Protocol
  • Web Page Authentication
  • WPR, Landing Page, Redirect
  • Support for Internal WPR, Landing Page and Authentication
  • Support for External WPR, Landing Page and Authentication
  • Support for Xirrus EasyPass Access Service
  • Regulatory Compliance EMC, Safety and Wireless
    • FCC CFR 47 Part 15, Class B
    • ICES-003 Class B
    • FCC Subpart C 15.247
    • FCC Subpart E 15.407
    • RSS-247
    • EN 301 893
    • EN 300 328
    • EN 301 489 1 & 17
    • EN 62311
    • EN 55022 (CISPR 22)
    • AS/NZS4268 + CISPR22
    Safety
    • IEC 60950-1
    • EN 60950-1
    • UL 60950-1
    • CSA 22.2 No.60950-1-03
    • AS/NZS 60950.1
    • Air handling space (UL 2043)
    Environmental Specifications Operating Temperature: 0-50C, 0-90% humidity, non-condensing
    Storage Temperature: -40C to 70C
    Channel Support 2.4GHz (Channel selections are based upon country code selections) 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
    Channel Support 5GHz (Channel selections are based upon country code selections) U-NII-1 – Non-DFS channels
    36 40 44 48
    U-NII-2A DFS channels*
    52 56 60 64
    U-NII-2C DFS channels*
    100 104 108 112 116 120 124 128 132 136 140 144
    U-NII-3 Non-DFS channels
    149 153 157 161 165
    Management Interfaces Command line interface
    Web interface (http / https)
    Xirrus Management System (XMS)
    XMS-Cloud
    XMS-Enterprise
    Management
    • SNMP v1, v2c, v3
    • RFC 854 Telnet
    • RFC 1155 Management Information for TCP/IP Based Internets
    • RFC 1156 MIB
    • RFC 1157 SNMP
    • RFC 1212 Concise MIB Definitions
    • RFC 1213 SNMP MIB II
    • RFC 1215 A Convention for Defining Traps for use with the SNMP
    • RFC 1350 TFTP
    • RFC 1643 Ethernet MIB
    • RFC 2030 Simple Network Time Protocol SNTP
    • RFC 2578 Structure of Management Information Version 2 (SMIv2)
    • RFC 2579 Textual Conventions for SMIv2
    • RFC 2616 HTTP 1.1
    • RFC 2665 Definitions of Managed Objects for the Ethernet Like Interface Types
    • RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering and Virtual LAN Extensions
    • RFC 2819 Remote Network Monitoring Management Information Base
    • RFC 2863 The Interface Group MIB
    • RFC 3164 BSD Syslog Protocol
    • RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol
    • RFC 3416 Version 2 of the Protocol Operations for (SNMPv3) the Simple Network Management Protocol (SNMP)
    • RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP)
    • RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
    • RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework
    • RFC 3636 Definitions of Managed Objects for IEEE Xirrus Private MIBs
    • Integration with Splunk for accurate search and analysis of intra-organizational IT events
    • Netflow Export v9 and IPFIX compatibility allows for IP traffic statistics collection
    • RFC 6455 Two way WebSocket based communication protocol
    • STOMP Simple Text Oriented Message Protocol for message oriented middleware

    Receive Sensitivity

    2.4 GHz XA4-240
    802.11b
    1 Mbps -95
    11Mbps -88
    802.11g
    6 Mbps -93
    54 Mbps -75
    802.11n HT20
    MSC0 -91
    MSC7 -72
    802.11n HT40
    MSC0 -88
    5 GHz XA4-240
    802.11a
    6 Mbps -89
    54 Mbps -74
    802.11n HT20
    MSC0 -90
    MSC7 -71
    802.11n HT40
    MSC0 -87
    MSC7 -68
    802.11ac VHT20
    MSC0 -90
    MSC9 -66
    5 GHz XA4-240
    802.11ac VHT40
    MSC0 -87
    MSC9 -61
    802.11ac VHT80
    MSC0 -84
    MSC9 -58
    802.11ac VHT160
    MSC0
    MSC9



    Pricing Notes:

    Xirrus Products
    XA Indoor Access Points Series
    XA High Density AP with 4 - 4x4 802.11ac Wave 2 radios with RP-SMA antenna connectors for externally connected antennas
    #XA4-240
    Our Price: $2,195.00
    Antennas and Optics
    6' antenna cable for XA4-240 antennas. Order 4 cables per antenna. Cable is LMR-195, male RP-SMA to female RP-SMA connectors.
    #ANT-CAB-195-6-MF
    Our Price: $40.00
    30 degree 4x4 directional antenna for XA4-240. Four 90cm long pigtails with male RP-SMA connectors. Comes with articulating mount for flexibility in aiming.
    #ANT-IN-DIR30-4x4-RPSMA
    Our Price: $180.00
    60 degree 4x4 directional antenna for XA4-240. Four 90cm long pigtails with male RP-SMA connectors. Comes with articulating mount for flexibility in aiming.
    #ANT-IN-DIR60-4x4-RPSMA
    Our Price: $180.00
    Support
    1 Year Premium Hardware Support for XA4-XXX HD AP
    #SU-HW-XA4-1
    Our Price: $29.00
    3 Years Premium Hardware Support for XA4-XXX HD AP
    #SU-HW-XA4-3
    Our Price: $75.00
    5 Years Premium Hardware Support for XA4-XXX HD AP
    #SU-HW-XA4-5
    Our Price: $117.00
    1 Year Premium Software Support for ArrayOS on XA4-XXX HD AP
    #SU-AOS-XA4-1
    Our Price: $66.00
    3 Years Premium Software Support for ArrayOS on XA4-XXX HD AP
    #SU-AOS-XA4-3
    Our Price: $168.00
    5 Years Premium Software Support for ArrayOS on XA4-XXX HD AP
    #SU-AOS-XA4-5
    Our Price: $263.00
